2.5" SSDs

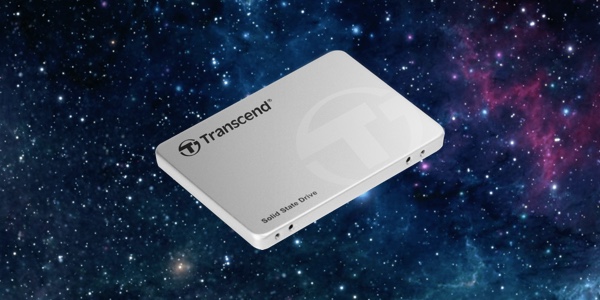

SATA III 6Gb/s SSD230S

Transcend's SATA III 6Gb/s SSD230S uses the latest 3D NAND technology that features vertical, stacked expansion of storage cells. By using high-quality flash memory and enhanced firmware algorithms, the SSD230S delivers greater performance and reliability.


3D expansion to break through limits

Unlike planar NAND memory, 3D NAND flash features memory cells stacked vertically in multiple layers. 3D NAND overcomes density limitations of 2D planar NAND, and delivers a higher level of performance and endurance.

Performance boost for everyday computing

Taking full advantage of the SATA III 6Gb/s interface and built-in SLC caching technology, Transcend's SSD230S achieves exceptional transfer speeds of up to 560MB/s read and 520MB/s write.

Guaranteed endurance and reliability

Transcend's SSD230S offers great Terabytes Written (TBW) values (up to 2,240 TB) indicating the total amount of data you can write into the drive over its lifetime.

RAID engine and LDPC coding

Detects and corrects transfer errors to prevent data corruption in TLC-based SSD products

Garbage Collection

Relocates existing data to release memory blocks

Wear-leveling

Distributes data evenly across memory cells to prolong SSD's lifespan

DevSleep

Intelligently shuts down SATA interface when not in use to prolong device's battery life

DDR3 DRAM cache

Stores a temporary copy of the most active data to shorten access times

A better choice than HDD

Solid-state drives dominate the market for PC upgrades because they are faster and lighter than hard disk drives. SSDs also feature less power, create less noise when in operation, and are more shock-resistant than traditional hard drives.

SSD Scope software

Transcend SSD Scope is advanced, user-friendly software that makes it easy to ensure your Transcend SSD remains healthy, and continues to run fast and error-free by determining the condition and optimizing the performance of your drive.

Learn more

Guaranteed quality

Transcend’s solid state drives are built to the highest standards and rigorously tested, and offer outstanding quality, performance, and reliability.

Specifications

Appearance

Dimensions100 mm x 69.85 mm x 6.8 mm (3.94" x 2.75" x 0.28")
Weight53 g (1.87 oz)

Storage

Flash Type
  • 3D NAND flash
Capacity
  • 128 GB
  • 256 GB
  • 512 GB
  • 1 TB
  • 2 TB
  • 4 TB

Operating Environment

Operating Temperature0°C (32°F) ~ 70°C (158°F)
Operating Voltage
  • 5V±5%

Performance

Sequential Read/Write (CrystalDiskMark)
  • TB
    Up to / MB/s
  • 4 TB
    Up to 560/520 MB/s
  • 2 TB
    Up to 560/520 MB/s
  • 1 TB
    Up to 560/500 MB/s
  • 512 GB
    Up to 560/500 MB/s
  • 256 GB
    Up to 530/400 MB/s
  • 128 GB
    Up to 560/380 MB/s
  • GB
    Up to / MB/s
  • GB
    Up to / MB/s
4K Random Read/Write (IOmeter)
  • TB
    Up to / IOPS
  • 4 TB
    Up to 90,000/85,000 IOPS
  • 2 TB
    Up to 85,000/89,000 IOPS
  • 1 TB
    Up to 85,000/85,000 IOPS
  • 512 GB
    Up to 65,000/85,000 IOPS
  • 256 GB
    Up to 65,000/85,000 IOPS
  • 128 GB
    Up to 35,000/70,000 IOPS
  • GB
    Up to / IOPS
  • GB
    Up to / IOPS
Terabytes Written (TBW)
  • TB
    TBW
  • 4 TB
    2,240 TBW
  • 2 TB
    1,120 TBW
  • 1 TB
    560 TBW
  • 512 GB
    280 TBW
  • 256 GB
    140 TBW
  • 128 GB
    70 TBW
  • GB
    TBW
  • GB
    TBW
Mean Time Between Failures (MTBF)2,000,000 hour(s)
Drive Writes Per Day (DWPD)0.3 (5 yrs)
Note
  • Speed may vary due to host hardware, software, usage, and storage capacity.
  • The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity.
  • Terabytes Written (TBW) expresses the endurance under the highest capacity.
  • For Mac users please visit our Apple Solutions here.

Warranty

Certificate
  • CE
  • UKCA
  • FCC
  • BSMI
  • KC
  • RCM
Warranty
  • Five-year Limited Warranty
Warranty Policy
  • Please click here for more information about the Transcend Warranty Policy.
  • Warranty does not apply when SSD Scope's lifetime indicator displays 0% within the warranty coverage.

Package

Package Contents
  • Full unit

System Requirement

Operating System
  • Microsoft Windows 7 or later
  • Linux Kernel 2.6.31 or later

Technology

TRIM & NCQ Command
S.M.A.R.T.
DDR3 DRAM Cache
Advanced Garbage Collection
DevSleep Mode
RAID Engine
LDPC Coding

Awards

Honor Award

MikroBitti
Finland

Price/ performance Award

Tweaks.pl
Poland

Excellent Quality Award

Tweaks.pl
Poland

Cost Effective

ALLSSD
Russia


Order Information

128GB
  • TS128GSSD230S
256GB
  • TS256GSSD230S
512GB
  • TS512GSSD230S
1TB
  • TS1TSSD230S
2TB
  • TS2TSSD230S
4TB
  • TS4TSSD230S
